| MOQ: | 1単位 |
| 価格: | Negotation |
| standard packaging: | カートン箱で詰められる |
| Delivery period: | 3仕事日 |
| payment method: | T/T、ウェスタン・ユニオン |
| Supply Capacity: | 1ヶ月あたりの2000 PC |

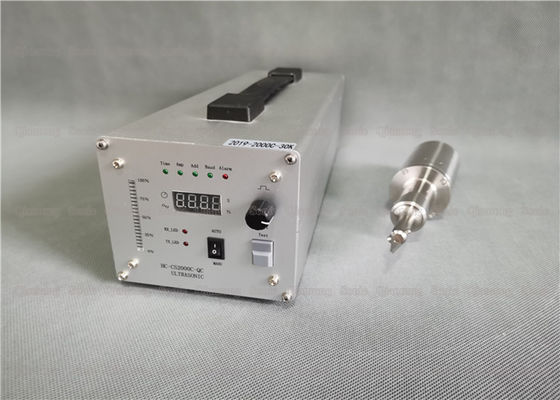

Ultra Cutter with Sonotrode of 30Khz and 100w Power for Fabric Cutting Smoothly
Description:
Ultrasonic cutting equipment/plastic rubber cutting: The maximum output power of the machine-mounted ultrasonic cutting knife is 300W. It is used for cutting difficult-to-cut materials. A 1mm thick wear-resistant carbide blade can be used, and the user can replace the blade by himself and add a cutting knife The life span is less costly.
QRsonic can supply 20khz, 30khz, 35khz. 40khz ultrasonic cutting machine for different application. Ultrasonic cutting uses ultrasonic energy to heat and melt the material to be cut to achieve the purpose of cutting materials. It can easily cut resin, rubber, non-woven fabrics, films, various overlapping composite materials and food. The principle of the ultrasonic cutting machine is completely different from the traditional pressure cutting.
Specifications:
| Item No | QR-C30Y |
| Power | 300W |
| Generator | Digital generator |
| Frequency | 30KHZ |
| Voltage | 220V or 110V |
| Weight of Blade | 1.25kgs |
| Gross weight | 6.5Kg |
| Application | Fabric cutter |
Comparison between Traditional Cutter and Ultrasonic Cutter
| Traditional Cutter | Ultrasonic Cutter |
| A sharp-edged tool that presses against the material being cut. | The ultrasonic energy is concentratedly input to the cutting portion of the material to be cut. |
| The pressure is concentrated at the cutting edge, the pressure is very large, exceeding the shear strength of the material being cut, and the molecular bonding of the material is pulled apart and cut. | Under the action of huge ultrasonic energy, this part softens and melts instantly, and the strength is greatly reduced. The purpose of cutting the material can be achieved with a small amount of force |
| The cutting tool has a sharp edge and the material itself is subject to relatively high pressure. | High stability, environmental protection and no pollution |
| It is not good for soft and elastic materials, and it is more difficult for viscous materials. | The biggest feature is that there is no traditional cutting edge. |
Advantages:
The maximum output power is 300W. It is used for cutting difficult-to-cut materials. A 1mm thick wear-resistant carbide blade can be used, and the user can replace the blade by himself, increasing the life of the cutting knife and reducing the cost of use. Ultrasonic cutting uses ultrasonic energy to heat and melt a part of the material to be cut to achieve the purpose of cutting the material without a sharp edge.
The robotic arm uses an ultrasonic cutting knife for cutting. This ultrasonic cutting knife uses a 1mm thick alloy blade. The sharp blade reduces the cutting contact surface and reduces the heat of the blade. The sharp blade uses ultrasonic waves. Make the cutting effect more ideal. 30K ultrasonic cutting knife can be used for hand-held cutting and automatic mechanical clamping.
Ultra Cutter with Sonotrode of 30Khz and 100w Power for Fabric Cutting Smoothly
.
