杭州Qianrongのオートメーション装置Co.、株式会社。
顧客に勝つために超音波適用に、誠実に焦点を合わせて下さい
| 起源の場所: | 中国 |
|---|---|
| ブランド名: | QRsonic |
| 証明: | CE |
| モデル番号: | QR-CF35Y |
| 最小注文数量: | 1単位 |
| 価格: | Negotation |
| パッケージの詳細: | カートン箱で詰められる |
| 受渡し時間: | 3仕事日 |
| 支払条件: | T/T、ウェスタン・ユニオン |
| 供給の能力: | 1ヶ月あたりの2000 PC |
| 製品名: | 超音波生地の切断 | 頻度: | 35KHz |
|---|---|---|---|
| 力: | 30W | 発電機: | デジタル発電機 |
| 電圧: | 220Vか110V | 刃の重量: | 0.5kgs |
| 取り替えの刃: | 1pcs | 適用: | 生地材料 |
| ハイライト: | Ultrasonic Cutting Machine 35khz,100w Ultrasonic Cutting Machine,Ultrasonic Cutting pe fabric Machine |
||

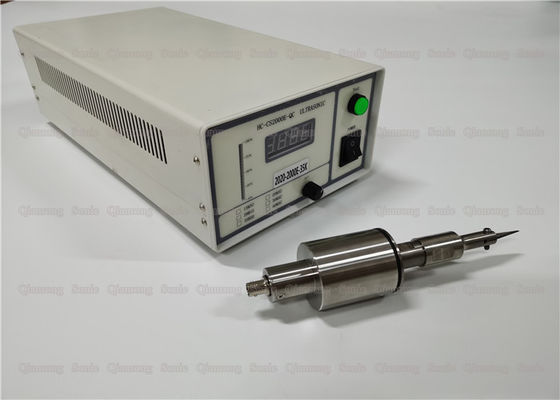

35Khz 100W Robot's Arm Handing Ultrasonic Cutting Machine for PE Woven Bag Fabric
Description:
Ultrasonic cutting uses ultrasonic energy to heat and melt the material to be cut to achieve the purpose of cutting materials. It can easily cut resin, rubber, non-woven fabrics, films, various overlapping composite materials and food. The principle of the ultrasonic rubber cutter is completely different from the traditional pressure cutting.
Ultrasonic cutting machine is an ultrasonic device specially used for cutting, which is one of the important categories of ultrasonic applications.Ultrasonic cutting uses the energy of ultrasonic waves to melt the localized heat of the material to be cut, so that it does not require a sharp edge. The principle of ultrasonic rubber cutting knives is quite different from the traditional pressure cutting.
Ultrasonic cutters can be used to cut thermoplastic resin sheets, sheets, films and laminates, carbon fiber composites, polyethylene fibers, molded articles containing carbon or glass fibers, rubber, vulcanized latex, non-vulcanized latex and food.
Specifications:
| Item No | QR-CF35Y |
| Power | 30W |
| Generator | Digital generator |
| Frequency | 35KHZ |
| Voltage | 220V or 110V |
| Handle Dimension | Φ38*22m |
| Weight of blade | 0.5kgs |
| Gross weight | 5Kg |
| Application | Fabric cutter |
Advantages of ultrasonic cutting:
1. High stability: when the ultrasonic generator is working, it generates 30KHz electromagnetic vibration, which is transformed into mechanical vibration and transmitted to the cutting knife and the material to be cut. The cutting is performed mechanically, so there is no need for sharp cutting edges, and the blade wear is small , And the cutter head can be replaced by yourself.
2. No pollution: When the ultrasonic knife is cutting, the temperature of the knife head is lower than 50 ℃, so smoke and odor will not be generated, which eliminates the danger of injury and fire during cutting.
3. Neat cutting: due to ultrasonic cutting by high-frequency vibration, the material will not adhere to the surface of the blade, and only a small amount of pressure is required when cutting, and it will not deform and wear for fragile and soft materials. The fabric is cut and automatically sealed at the same time , Will not cause edge collapse.
4. Simple operation: the cutting knife is connected to the ultrasonic generator, the generator is connected to the 220V mains, and the switch is turned on to start cutting. It supports hand-held cutting and is equipped with air-cooled interface.
5. Wide range of applications: all kinds of textile materials and plastic sheets can be ultrasonically cut, such as natural fibers, synthetic fibers, non-woven fabrics and knitted fabrics can be ultrasonically cut.
35Khz 100W Robot's Arm Handing Ultrasonic Cutting Machine for PE Woven Bag Fabric
