| Moq: | 1ユニット |
| 価格: | Negotation |
| 標準パッケージ: | 木製のケースで詰め込まれています |
| 支払方法: | T/T、ウェスタンユニオン |
| 供給容量: | 1か月あたり1000ユニット |

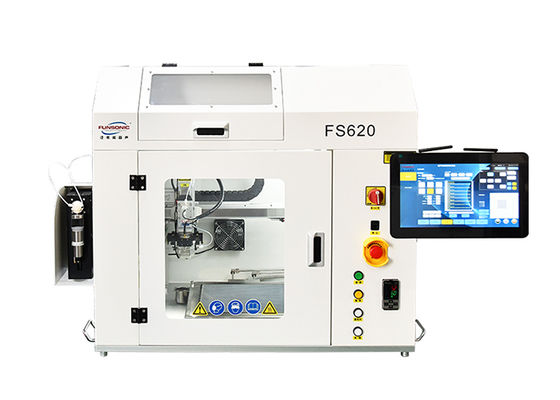

Ultrasonic AEM Spraying Technology
Description:
Ultrasonic AEM spraying is a high-precision, low waste spraying technological know-how appropriate for non-contact machining processes. Ultrasonic AEM spraying generates extraordinarily small droplets via ultrasonic vibration, accomplishing micrometer or even nanometer stage coating thickness control, making sure excessive uniformity and accuracy of the coating.
Ultrasonic AEM spraying is appropriate for liquid substances of a variety of viscosities, which include excessive viscosity materials, as properly as unstable or warmness touchy materials. During the processing, direct contact between the nozzle and the substrate is avoided, lowering the threat of substrate damage. It is appropriate for flexible, fragile, or irregularly formed substrates.
Parameters:
| Product Type |
Intelligent Ultrasonic Precision Coating Machine desktop Type |
| Spray Nozzle Operating Frequency | 20-200KHz (Normally use 60100110120K) |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.01-50ml/min |
| Effective Spraying Width | 2-100mm |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤30cps |
| Temperature Range | 1-60℃ |
| Atomized Particles (Median Value) | 10-45μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.15MPA |
| Input Voltage | 220V±10%/50-60Hz |
| Exercise Mode | XYZ three-axis, independently programmable |
| Control Mode | FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |
| Liquid Supply Method | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 20ml or 50ml, 40K, biological grade sampler |
| Rated Power of Ultrasonic Dispersion System | 100W |
Substrate Type:
1. Glass
Suitable for manufacturing transparent conductive films, widely used in touch screens and optoelectronic devices.
2. Ceramics
In the field of electronic components and catalysts, ceramic substrates can provide good chemical stability and high temperature resistance.
3. Metal
Metal substrates such as aluminum, copper, etc. can be used for electrical connections and deposition of conductive films.
4. Semiconductors
Semiconductor materials such as silicon and germanium are suitable for thin film deposition in microelectronic devices to ensure excellent electrical performance.
5. Polymer
Some polymer substrates can withstand low-temperature deposition and are suitable for the preparation of flexible electronic devices.
6. Composite materials
Composite substrates can be used for purposes that require light-weight and excessive strength, such as the aerospace and automobile industries.
7. Thin film materials
Suitable for surface modification and functionalization of other existing thin film materials.
8. Optical materials
Optical materials with good transparency can be used for the deposition of optical thin films, improving transparency and anti reflection performance.
9. Biomaterials
Suitable for deposition of biocompatible coatings in biomedical applications.
Scientific Research Laboratory Qualitative Testing Ultrasonic Coating Machine
